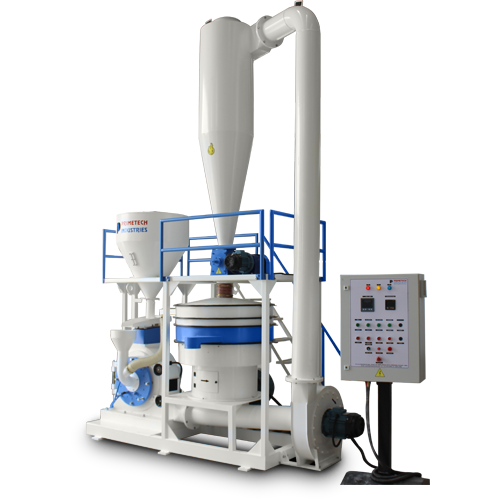

We are reputed manufacturer and supplier of best quality pulverizers, Pulverizer for roto polymers. It is precisely engineered with using best grade material to offer higher robustness and durability. It is a defined grinder that is used to grind brittle and hard material.
Pulverizer – Manufacturer & Supplier, Exporter India
It includes the materials like plastic sheets, tubes, waste films, and other used items. It also includes the plastic disposables and another scrap from chemical, pharmaceutical and food and beverages industry.
Applications
- Lldpe for Rotomoulding ,
- Recycling of RPVC,uP.V.C,cP.V.C, soft PVC, PU & UHMW .
- Master-Batching application and various thermoplastic material.
Features
- Low power consumption with high throughput
- Economical production cost with consistence output quality
- Low maintenance
- Minimum man power requirement Grinding disk made form German imported high graded alloy steel
- Cooling provision for Stationery disk, Mill body, Duct line, Bearing, Housing
- Monitoring of Main motor load and control system
- Monitoring of Powder Temperature & control system (optional)
- Microprocessor based machine control panel with digital display (optional)
- Exact and easy grinding gap adjustment
- Housing design for optimized water-cooling
Product Range
| Specification | Unit | Models | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PP30 | PP40 | PP60 | PP80 | PP100 | PP120 | PP150 | PP200 | PP300 | PP300 | PP400 | ||
| DISC DIA | mm | 250 | 250 | 300 | 300 | 400 | 400 | 400 | 600 | 400 | 600 | 600 |
| MAIN MOTOR | HP | 10 | 12.5 | 15 | 20 | 30 | 40 | 50 | 75 | 50+50 | 100 | 75+75 |
| OUTPUT IN LLDPE kg/hr. FLOOR SPACE | 30 | 40 | 60 | 80 | 100 | 120 | 150 | 200 | 300 | 300 | 400 | |
| LENGTH | mm | 2000 | 2000 | 2200 | 2200 | 2400 | 2400 | 2400 | 3700 | 4600 | 3700 | 5400 |
| WIDTH | mm | 1300 | 1300 | 1400 | 1400 | 1600 | 1600 | 1600 | 1900 | 2000 | 1900 | 1900 |
| HEIGHT | mm | 3000 | 3000 | 3100 | 3100 | 4000 | 4000 | 4000 | 4600 | 5200 | 5000 | 5000 |
